SPI Library

The SPI module is available with all dsPIC30/33 and PIC24 MCUs. mikroC PRO for dsPIC30/33 and PIC24 provides a library for initializing the Slave mode and initializing and comfortable work with the Master mode. The dsPIC30/33 and PIC24 can easily communicate with other devices via SPI: A/D converters, D/A converters, MAX7219, LTC1290, etc.

Important :

SPI library routines require you to specify the module you want to use. To select the desired SPI module, simply change the letter x in the routine prototype for a number from 1 to 3.
Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.
Switching between the SPI modules in the SPI library is done by the SPI_Set_Active function (both SPI modules have to be previously initialized).

Generic Routines

SPI_Read
SPI_Write

SPIx_Init

Prototype	void SPIx_Init();
Description	Configures and initializes the SPI module with default settings. Default settings: Master mode 8-bit data mode secondary prescaler 1:1 primary prescaler 64:1 Slave Select disabled input data sampled in the middle of interval clock idle state low Serial output data changes on transition from active clock state to idle clock state
Parameters	None.
Returns	Nothing.
Requires	MCU must have the SPI1 module.
Example	// Initialize the SPI1 module with default settings SPI1_Init();
Notes	SPI library routines require you to specify the module you want to use. To select the desired SPI module, simply change the letter x in the routine prototype for a number from 1 to 3. Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library. Switching between the SPI modules in the SPI library is done by the SPI_Set_Active function (both SPI modules have to be previously initialized).

SPIx_Init_Advanced

Prototype

void SPIx_Init_Advanced(unsigned master_mode, unsigned mode16, unsigned sec_prescaler, unsigned pri_prescaler, unsigned slave_select, unsigned data_sample, unsigned clock_idle, unsigned edge);

Description

Configures and initializes the SPI module with user defined settings.

Parameters

Parameters master_mode, mode16, sec_prescaler, pri_prescaler, slave_select, data_sample, clock_idle and determine the working mode for SPI.

The master_mode parameter determines the working mode for SPI module.

Master/Slave mode
Description	Predefined library const
`Master mode`	`_SPI_MASTER`
`Slave mode`	`_SPI_SLAVE`

The parameter mode16 determines the data length mode, which can be 8-bits (per transmitions cycle) or 16-bits.

Data Length Mode
Description	Predefined library const
`16-bit mode`	`_SPI_16_BIT`
`8-bit mode`	`_SPI_8_BIT`

The parameter sec_prescaler determines the value of the secondary SPI clock prescaler. Used only in the Master Mode.

Secondary SPI Clock Prescaler Value
Description	Predefined library const
`Secondary Prescaler 1:1`	`_SPI_PRESCALE_SEC_1`
`Secondary Prescaler 1:2`	`_SPI_PRESCALE_SEC_2`
`Secondary Prescaler 1:3`	`_SPI_PRESCALE_SEC_3`
`Secondary Prescaler 1:4`	`_SPI_PRESCALE_SEC_4`
`Secondary Prescaler 1:5`	`_SPI_PRESCALE_SEC_5`
`Secondary Prescaler 1:6`	`_SPI_PRESCALE_SEC_6`
`Secondary Prescaler 1:7`	`_SPI_PRESCALE_SEC_7`
`Secondary Prescaler 1:8`	`_SPI_PRESCALE_SEC_8`

The parameter pri_prescaler determines the value of the primary SPI clock prescaler. Used only in the Master Mode.

Primary SPI Clock Prescaler Value
Description	Predefined library const
`Primary Prescaler 1:1`	`_SPI_PRESCALE_PRI_1`
`Primary Prescaler 4:1`	`_SPI_PRESCALE_PRI_4`
`Primary Prescaler 16:1`	`_SPI_PRESCALE_PRI_16`
`Primary Prescaler 64:1`	`_SPI_PRESCALE_PRI_64`

The parameter slave_select determines whether the Slave Select (SS) pin is used in communication. Valid in the Slave Mode only.

Slave Select Enable/Disable
Description	Predefined library const
`SS used for the Slave mode`	`_SPI_SS_ENABLE`
`SS not used for the Slave mode`	`_SPI_SS_DISABLE`

The parameter data_sample determines the sample moment (phase) of input data.

Data Sampling Moment
Description	Predefined library const
`Data sampled in the middle of data output time`	`_SPI_DATA_SAMPLE_MIDDLE`
`Data sampled at end of data output time`	`_SPI_DATA_SAMPLE_END`

The parameter clock_idle determines the behaviour of the SPI clock (CLK) line in IDLE phase.

Clock Polarity
Description	Predefined library const
`IDLE state is Lo, ACTIVE state is Hi`	`_SPI_CLK_IDLE_LOW`
`IDLE state is Hi, ACTIVE state is Lo`	`_SPI_CLK_IDLE_HIGH`

The parameter edge determines on which clock edge data is considered to be valid.

Clock Edge
Description	Predefined library const
`Data is valid on ACTIVE-to-IDLE transition`	`_SPI_ACTIVE_2_IDLE`
`Data is valid on IDLE-to-ACTIVE transition`	`_SPI_IDLE_2_ACTIVE`

Returns

Nothing.

Requires

MCU must have the SPI module.

Example

// Set SPI1 to the Master Mode, data length is 16-bit, clock = Fcy (no clock scaling), data sampled in the middle of interval, clock IDLE state high and data transmitted at low to high clock edge:
SPI1_Init_Advanced(_SPI_MASTER, _SPI_16_BIT, _SPI_PRESCALE_SEC_1, _SPI_PRESCALE_PRI_1, _SPI_SS_DISABLE, _SPI_DATA_SAMPLE_MIDDLE, _SPI_CLK_IDLE_HIGH, _SPI_ACTIVE_2_IDLE);

Notes

SPI library routines require you to specify the module you want to use. To select the desired SPI module, simply change the letter x in the routine prototype for a number from 1 to 3.

Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

SPIx_Read

Prototype	unsigned SPIx_Read(unsigned buffer);
Description	Reads one word or byte (depending on mode set by init routines) from the SPI bus.
Parameters	`data_out:` dummy data for clock generation (see device Datasheet for SPI modules implementation details)
Returns	Received data.
Requires	Routine requires at least one SPI module. Used SPI module must be initialized before using this function. See the SPIx_Init and SPIx_Init_Advanced routines.
Example	// read a byte from the SPI bus char take, buffer; ... take = SPI1_Read(buffer);
Notes	SPI library routines require you to specify the module you want to use. To select the desired SPI module, simply change the letter x in the routine prototype for a number from 1 to 3. Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

SPIx_Write

Prototype	void SPIx_Write(unsigned data_out);
Description	Writes one word or byte (depending on mode set by init routines) via the SPI bus.
Parameters	`data_out:` data to be sent
Returns	Nothing.
Requires	Routine requires at least one SPI module. Used SPI module must be initialized before using this function. See the SPIx_Init and SPIx_Init_Advanced routines.
Example	// write a byte to the SPI bus char buffer; ... SPI1_Write(buffer);
Notes	SPI library routines require you to specify the module you want to use. To select the desired SPI module, simply change the letter x in the routine prototype for a number from 1 to 3. Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

SPI_Set_Active

Prototype	void SPI_Set_Active(unsigned (read_ptr)(unsigned), void(write_ptr)(unsigned));
Description	Sets the active SPI module which will be used by the SPIx_Read and SPIx_Write routines.
Parameters	Parameters : `read_ptr:` SPI1_Read handler `write_ptr:` SPI1_Write handler
Returns	Nothing.
Requires	Routine is available only for MCUs with multiple SPI modules. Used SPI module must be initialized before using this function. See the SPIx_Init and SPIx_Init_Advanced routines.
Example	SPI_Set_Active(SPI1_Read, SPI1_Write); // Sets the SPI1 module active
Notes	Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

SPI_Read

Prototype	unsigned SPI_Read(unsigned buffer);
Description	Reads one word or byte (depending on mode set by init routines) from the SPI bus. This is a generic routine which uses the active SPI module previously activated by the SPI_Set_Active routine.
Parameters	`data_out:` dummy data for clock generation (see device Datasheet for SPI modules implementation details)
Returns	Received data.
Requires	Routine requires at least one SPI module. Used SPI module must be initialized before using this function. See the SPIx_Init and SPIx_Init_Advanced routines.
Example	// read a byte from the SPI bus char take, buffer; ... take = SPI_Read(buffer);
Notes	Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

SPI_Write

Prototype	void SPI_Write(unsigned data_out);
Description	Writes one word or byte (depending on mode set by init routines) via the SPI bus. This is a generic routine which uses the active SPI module previously activated by the SPI_Set_Active routine.
Parameters	`data_out:` data to be sent
Returns	Nothing.
Requires	Routine requires at least one SPI module. Used SPI module must be initialized before using this function. See the SPIx_Init and SPIx_Init_Advanced routines.
Example	// write a byte to the SPI bus char buffer; ... SPI_Write(buffer);
Notes	Number of SPI modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

Library Example

The code demonstrates how to use SPI library functions for communication between SPI2 module of the MCU and MCP4921 DAC chip.

Copy Code To Clipboard

// DAC module connections
sbit Chip_Select at LATF0_bit;
sbit Chip_Select_Direction at TRISF0_bit;
// End DAC module connections

unsigned int value;

void InitMain() {
  TRISB0_bit = 1;                        // Set RB0 pin as input
  TRISB1_bit = 1;                        // Set RB1 pin as input
  Chip_Select = 1;                       // Deselect DAC
  Chip_Select_Direction = 0;             // Set CS# pin as Output
  SPI1_Init();                           // Initialize SPI module
}

// DAC increments (0..4095) --> output voltage (0..Vref)
void DAC_Output(unsigned int valueDAC) {
  char temp;

  Chip_Select = 0;                       // Select DAC chip

  // Send High Byte
  temp = (valueDAC >> 8) & 0x0F;         // Store valueDAC[11..8] to temp[3..0]
  temp |= 0x30;                          // Define DAC setting, see MCP4921 datasheet
  SPI1_Write(temp);                      // Send high byte via SPI

  // Send Low Byte
  temp = valueDAC;                       // Store valueDAC[7..0] to temp[7..0]
  SPI1_Write(temp);                      // Send low byte via SPI

  Chip_Select = 1;                       // Deselect DAC chip
}

void main() {

  ADPCFG = 0xFFFF;                        // Configure AN pins as digital

  InitMain();                            // Perform main initialization

  value = 2048;                          // When program starts, DAC gives
                                         //   the output in the mid-range

 while (1) {                             // Endless loop

    if ((RB0_bit) && (value < 4095)) {   // If RB0 button is pressed
      value++;                           //   increment value
      }
    else {
      if ((RB1_bit) && (value > 0)) {    // If RB1 button is pressed
        value--;                         //   decrement value
        }
      }
    DAC_Output(value);                   // Send value to DAC chip
    Delay_ms(1);                         // Slow down key repeat pace
  }
}

HW Connection

SPI connection

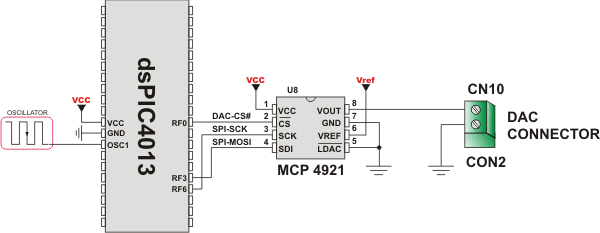

SPI HW connection
