PWM Library
The CCP module is available with a number of dsPIC30/33 and PIC24 MCUs. mikroC PRO for dsPIC30/33 and PIC24 provides a library which simplifies using of the PWM HW Module.

Library Routines
PWM_Init
Prototype |
unsigned int PWM_Init(unsigned long freq_hz, unsigned int enable_channel_x, unsigned int timer_prescale, unsigned int use_timer_x); // 30F1010 and dsPIC33FJ06GS101/102/202 prototypeunsigned int PWM_Init(unsigned long freq_hz, unsigned int enable_channel_x, unsigned int timer_prescale); |
---|---|
Description |
Initializes the PWM module with duty ratio 0. |
Parameters |
|
Returns |
|
Requires |
MCU must have the HW PWM Module. |
Example |
// Initializes the PWM module at 5KHz, channel 1, no clock prescale, timer2 : unsigned int pwm_period1; ... pwm_period1 = PWM_Init(5000, 1, 0, 2); |
Notes |
Number of available PWM channels depends on MCU. Refer to MCU datasheet for details. |
PWM_Set_Duty
Prototype |
void PWM_Set_Duty(unsigned duty, unsigned channel); |
---|---|
Description |
The function changes PWM duty ratio. |
Parameters |
|
Returns |
Nothing. |
Requires |
MCU must have the HW PWM Module. PWM channel must be properly initialized. See PWM_Init routine. |
Example |
// Set channel 1 duty ratio to 50%: unsigned int pwm_period1; ... PWM_Set_Duty(pwm_period1/2, 1); |
Notes |
Number of available PWM channels depends on MCU. Refer to MCU datasheet for details. |
PWM_Start
Prototype |
void PWM_Start(char enable_channel_x); |
---|---|
Description |
Starts PWM at requested channel. |
Parameters |
|
Returns |
Nothing. |
Requires |
MCU must have the HW PWM Module. PWM channel must be properly configured. See the PWM_Init and PWM_Set_Duty routines. |
Example |
// start PWM at channel 1 PWM_Start(1); |
Notes |
Number of available PWM channels depends on MCU. Refer to MCU datasheet for details. |
PWM_Stop
Prototype |
void PWM_Stop(char disable_channel_x); |
---|---|
Description |
Stops PWM at requested channel. |
Parameters |
|
Returns |
Nothing. |
Requires |
MCU must have the HW PWM Module. |
Example |
// stop PWM at channel 1 PWM_Stop(1); |
Notes |
Number of available PWM channels depends on MCU. Refer to MCU datasheet for details. |
Library Example
The example changes PWM duty ratio on channels 1 and 2 continuously. If LEDs are connected to channels 1 and 2, a gradual change of emitted light will be noticeable.
unsigned int current_duty, old_duty, current_duty1, old_duty1; unsigned int pwm_period1, pwm_period2; void InitMain() { ADPCFG = 0xFFFF; // Configure AN pins as digital I/O TRISB = 0xFFFF; // configure PORTB pins as input PORTD = 0; // set PORTD to 0 TRISD = 0; // designate PORTD pins as output } void main() { InitMain(); current_duty = 16; // initial value for current_duty current_duty1 = 16; // initial value for current_duty1 pwm_period1 = PWM_Init(5000 , 1, 1, 2); pwm_period2 = PWM_Init(10000, 2, 1, 3); PWM_Start(1); PWM_Start(2); PWM_Set_Duty(current_duty, 1); // Set current duty for PWM1 PWM_Set_Duty(current_duty1, 2); // Set current duty for PWM2 while (1) { // endless loop if (RB0_bit) { // button on RB0 pressed Delay_ms(20); current_duty++; // increment current_duty if (current_duty > pwm_period1) { // if we increase current_duty greater then possible pwm_period1 value current_duty = 0; // reset current_duty value to zero } PWM_Set_Duty(current_duty, 1); // set newly acquired duty ratio } if (RB1_bit) { // button on RB1 pressed Delay_ms(20); current_duty--; // decrement current_duty if (current_duty > pwm_period1) { // if we decrease current_duty greater then possible pwm_period1 value (overflow) current_duty = pwm_period1; // set current_duty to max possible value } PWM_Set_Duty(current_duty, 1); // set newly acquired duty ratio } if (RB2_bit) { // button on RB2 pressed Delay_ms(20); current_duty1++; // increment current_duty1 if (current_duty1 > pwm_period2) { // if we increase current_duty1 greater then possible pwm_period2 value current_duty1 = 0; // reset current_duty1 value to zero } PWM_Set_Duty(current_duty1, 2); // set newly acquired duty ratio } if (RB3_bit) { // button on RB3 pressed Delay_ms(20); current_duty1--; // decrement current_duty1 if (current_duty1 > pwm_period2) { // if we decrease current_duty1 greater then possible pwm_period1 value (overflow) current_duty1 = pwm_period2; // set current_duty to max possible value } PWM_Set_Duty(current_duty1, 2); } Delay_ms(5); // slow down change pace a little } }

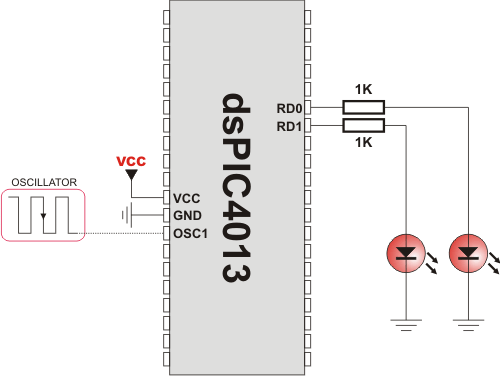

HW Connection
PWM demonstration
