CAN Library

The mikroC PRO for dsPIC30/33 and PIC24 provides a library (driver) for working with the dsPIC30F CAN module.

The CAN is a very robust protocol that has error detection and signalization, self–checking and fault confinement. Faulty CAN data and remote frames are re-transmitted automatically, similar to the Ethernet.

Data transfer rates depend on distance. For example, 1 Mbit/s can be achieved at network lengths below 40m while 250 Kbit/s can be achieved at network lengths below 250m. The greater distance the lower maximum bitrate that can be achieved. The lowest bitrate defined by the standard is 200Kbit/s. Cables used are shielded twisted pairs.

CAN supports two message formats:

Standard format, with 11 identifier bits and
Extended format, with 29 identifier bits

Important :

Consult the CAN standard about CAN bus termination resistance.
CAN library routines require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2.
Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxSetOperationMode

Prototype	void CANxSetOperationMode(unsigned int mode, unsigned int WAIT);
Description	Sets the CAN module to requested mode.
Parameters	`mode:` CAN module operation mode. Valid values: `CAN_OP_MODE` constants. See CAN_OP_MODE constants. `WAIT:` CAN mode switching verification request. If `WAIT == 0`, the call is non-blocking. The function does not verify if the CAN module is switched to requested mode or not. Caller must use CANxGetOperationMode to verify correct operation mode before performing mode specific operation. If `WAIT != 0`, the call is blocking – the function won’t “return” until the requested mode is set.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus.
Example	// set the CAN1 module into configuration mode (wait inside CAN1SetOperationMode until this mode is set) CAN1SetOperationMode(_CAN_MODE_CONFIG, 0xFF);
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxGetOperationMode

Prototype	unsigned int CANxGetOperationMode();
Description	The function returns current operation mode of the CAN module. See CAN_OP_MODE constants or device datasheet for operation mode codes.
Parameters	None.
Returns	Current operation mode.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus.
Example	// check whether the CAN1 module is in Normal mode and if it is then do something. if (CAN1GetOperationMode() == _CAN_MODE_NORMAL) { ... }
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxInitialize

Prototype	void CANxInitialize(unsigned int SJW, unsigned int BRP, unsigned int PHSEG1, unsigned int PHSEG2, unsigned int PROPSEG, unsigned int CAN_CONFIG_FLAGS);
Description	Initializes the CAN module. The internal dsPIC30F CAN module is set to : Disable CAN capture Continue CAN operation in Idle mode Do not abort pending transmissions Fcan clock : 4*Tcy (Fosc) Baud rate is set according to given parameters CAN mode is set to Normal Filter and mask registers IDs are set to zero Filter and mask message frame type is set according to `CAN_CONFIG_FLAGS` value `SAM`, `SEG2PHTS`, `WAKFIL` and `DBEN` bits are set according to `CAN_CONFIG_FLAGS` value.
Parameters	`SJW` as defined in MCU's datasheet (CAN Module) `BRP` as defined in MCU's datasheet (CAN Module) `PHSEG1` as defined in MCU's datasheet (CAN Module) `PHSEG2` as defined in MCU's datasheet (CAN Module) `PROPSEG` as defined in MCU's datasheet (CAN Module) `CAN_CONFIG_FLAGS` is formed from predefined constants. See CAN_CONFIG_FLAGS constants.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus.
Example	// initialize the CAN1 module with appropriate baud rate and message acceptance flags along with the sampling rules unsigned int can_config_flags; ... can_config_flags = _CAN_CONFIG_SAMPLE_THRICE & // Form value to be used _CAN_CONFIG_PHSEG2_PRG_ON & // with CAN1Initialize _CAN_CONFIG_STD_MSG & _CAN_CONFIG_DBL_BUFFER_ON & _CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_LINE_FILTER_OFF; CAN1Initialize(1,3,3,3,1,can_config_flags); // initialize the CAN1 module
Notes	CAN mode NORMAL will be set on exit. CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxSetBaudRate

Prototype	void CANxSetBaudRate(unsigned int SJW, unsigned int BRP, unsigned int PHSEG1, unsigned int PHSEG2, unsigned int PROPSEG, unsigned int CAN_CONFIG_FLAGS);
Description	Sets CAN baud rate. Due to complexity of the CAN protocol, you can not simply force a bps value. Instead, use this function when CAN is in Config mode. Refer to datasheet for details. `SAM`, `SEG2PHTS` and `WAKFIL` bits are set according to `CAN_CONFIG_FLAGS` value. Refer to datasheet for details.
Parameters	`SJW` as defined in MCU's datasheet (CAN Module) `BRP` as defined in MCU's datasheet (CAN Module) `PHSEG1` as defined in MCU's datasheet (CAN Module) `PHSEG2` as defined in MCU's datasheet (CAN Module) `PROPSEG` as defined in MCU's datasheet (CAN Module) `CAN_CONFIG_FLAGS` is formed from predefined constants. See CAN_CONFIG_FLAGS constants.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. CAN must be in Config mode, otherwise the function will be ignored. See CANxSetOperationMode.
Example	// set required baud rate and sampling rules unsigned int can_config_flags; ... CAN1SetOperationMode(_CAN_MODE_CONFIG,0xFF); // set CONFIGURATION mode (CAN1 module must be in config mode for baud rate settings) can_config_flags = _CAN_CONFIG_SAMPLE_THRICE & // Form value to be used _CAN_CONFIG_PHSEG2_PRG_ON & // with CAN1SetBaudRate _CAN_CONFIG_STD_MSG & _CAN_CONFIG_DBL_BUFFER_ON & _CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_LINE_FILTER_OFF; CAN1SetBaudRate(1,3,3,3,1,can_config_flags); // set the CAN1 module baud rate
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxSetMask

Prototype	void CANxSetMask(unsigned int CAN_MASK, long val, unsigned int CAN_CONFIG_FLAGS);
Description	Function sets mask for advanced filtering of messages. Given `value` is bit adjusted to appropriate buffer mask registers.
Parameters	`CAN_MASK:` CAN module mask number. Valid values: `CAN_MASK` constants. See CAN_MASK constants. `val:` mask register value. This value is bit-adjusted to appropriate buffer mask registers `CAN_CONFIG_FLAGS:` selects type of message to filter. Valid values: `_CAN_CONFIG_ALL_VALID_MSG`, `_CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_STD_MSG`, `_CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG`. See CAN_CONFIG_FLAGS constants.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. CAN must be in Config mode, otherwise the function will be ignored. See CANxSetOperationMode.
Example	// set appropriate filter mask and message type value CAN1SetOperationMode(_CAN_MODE_CONFIG,0xFF); // set CONFIGURATION mode (CAN1 module must be in config mode for mask settings) // Set all B1 mask bits to 1 (all filtered bits are relevant): // Note that -1 is just a cheaper way to write 0xFFFFFFFF. // Complement will do the trick and fill it up with ones. CAN1SetMask(_CAN_MASK_B1, -1, _CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG);
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxSetFilter

Prototype	void CANxSetFilter(unsigned int CAN_FILTER, long val, unsigned int CAN_CONFIG_FLAGS);
Description	Function sets message filter. Given `value` is bit adjusted to appropriate buffer mask registers.
Parameters	`CAN_FILTER:` CAN module filter number. Valid values: `CAN_FILTER` constants. See CAN_FILTER constants. `val:` filter register value. This value is bit-adjusted to appropriate filter registers `CAN_CONFIG_FLAGS:` selects type of message to filter. Valid values: `_CAN_CONFIG_STD_MSG` and `_CAN_CONFIG_XTD_MSG`. See CAN_CONFIG_FLAGS constants.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. CAN must be in Config mode, otherwise the function will be ignored. See CANxSetOperationMode.
Example	// set appropriate filter value and message type CAN1SetOperationMode(_CAN_MODE_CONFIG,0xFF); // set CONFIGURATION mode (CAN1 module must be in config mode for filter settings) // Set id of filter B1_F1 to 3 CAN1SetFilter(_CAN_FILTER_B1_F1, 3, _CAN_CONFIG_XTD_MSG);
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxRead

Prototype	unsigned int CANxRead(unsigned long id, char* data_, unsigned int* dataLen, unsigned int* *CAN_RX_MSG_FLAGS);
Description	If at least one full Receive Buffer is found, it will be processed in the following way : Message ID is retrieved and stored to location pointed by `id` pointer Message data is retrieved and stored to array pointed by `data` pointer Message length is retrieved and stored to location pointed by `dataLen` pointer Message flags are retrieved and stored to location pointed by `CAN_RX_MSG_FLAGS` pointer
Parameters	`id:` message identifier address `data:` an array of bytes up to 8 bytes in length `dataLen:` data length address `CAN_RX_MSG_FLAGS:` message flags address. For message receive flags format refer to `CAN_RX_MSG_FLAGS` constants. See CAN_RX_MSG_FLAGS constants.
Returns	`0` if nothing is received `0xFFFF` if one of the Receive Buffers is full (message received)
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. The CAN module must be in a mode in which receiving is possible. See CANxSetOperationMode.
Example	// check the CAN1 module for received messages. If any was received do something. unsigned int msg_rcvd, rx_flags, data_len; char data[8]; unsigned long msg_id; ... CAN1SetOperationMode(_CAN_MODE_NORMAL,0xFF); // set NORMAL mode (CAN1 module must be in mode in which receive is possible) ... rx_flags = 0; // clear message flags if (msg_rcvd = CAN1Read(&msg_id, data, &data_len, &rx_flags)) { ... }
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxWrite

Prototype	unsigned int CANxWrite(long id, char data_, unsigned int* DataLen, unsigned int CAN_TX_MSG_FLAGS);
Description	If at least one empty Transmit Buffer is found, the function sends message in the queue for transmission.
Parameters	`id:` CAN message identifier. Valid values: 11 or 29 bit values, depending on message type (standard or extended) `Data:` data to be sent `DataLen:` data length. Valid values: `0..8` `CAN_TX_MSG_FLAGS:` message flags. Valid values: `CAN_TX_MSG_FLAGS` constants. See CAN_TX_MSG_FLAGS constants.
Returns	`0` if all Transmit Buffers are busy `0xFFFF` if at least one Transmit Buffer is available
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. The CAN module must be in mode in which transmission is possible. See CANxSetOperationMode.
Example	// send message extended CAN message with appropriate ID and data unsigned int tx_flags; char data[8]; unsigned long msg_id; ... CAN1SetOperationMode(_CAN_MODE_NORMAL,0xFF); // set NORMAL mode (CAN1 must be in mode in which transmission is possible) tx_flags = _CAN_TX_PRIORITY_0 & _CAN_TX_XTD_FRAME & _CAN_TX_NO_RTR_FRAME; // set message flags CAN1Write(msg_id, data, 1, tx_flags);
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CAN Constants

There is a number of constants predefined in CAN library. To be able to use the library effectively, you need to be familiar with these. You might want to check the example at the end of the chapter.

CAN_OP_MODE Constants

CAN_OP_MODE constants define CAN operation mode. Function CANxSetOperationMode expects one of these as its argument:

Copy Code To Clipboard

const unsigned int
    _CAN_MODE_BITS   = 0xE0,   // Use this to access opmode  bits
    _CAN_MODE_NORMAL = 0x00,
    _CAN_MODE_SLEEP  = 0x20,
    _CAN_MODE_LOOP   = 0x40,
    _CAN_MODE_LISTEN = 0x60,
    _CAN_MODE_CONFIG = 0x80;

CAN_CONFIG_FLAGS Constants

CAN_CONFIG_FLAGS constants define flags related to CAN module configuration. Functions CANxInitialize and CANxSetBaudRate expect one of these (or a bitwise combination) as their argument:

Copy Code To Clipboard

const unsigned int
    _CAN_CONFIG_DEFAULT         = 0xFF,   // 11111111

    _CAN_CONFIG_PHSEG2_PRG_BIT  = 0x01,
    _CAN_CONFIG_PHSEG2_PRG_ON   = 0xFF,   // XXXXXXX1
    _CAN_CONFIG_PHSEG2_PRG_OFF  = 0xFE,   // XXXXXXX0

    _CAN_CONFIG_LINE_FILTER_BIT = 0x02,
    _CAN_CONFIG_LINE_FILTER_ON  = 0xFF,   // XXXXXX1X
    _CAN_CONFIG_LINE_FILTER_OFF = 0xFD,   // XXXXXX0X

    _CAN_CONFIG_SAMPLE_BIT      = 0x04,
    _CAN_CONFIG_SAMPLE_ONCE     = 0xFF,   // XXXXX1XX
    _CAN_CONFIG_SAMPLE_THRICE   = 0xFB,   // XXXXX0XX

    _CAN_CONFIG_MSG_TYPE_BIT    = 0x08,
    _CAN_CONFIG_STD_MSG         = 0xFF,   // XXXX1XXX
    _CAN_CONFIG_XTD_MSG         = 0xF7,   // XXXX0XXX

    _CAN_CONFIG_DBL_BUFFER_BIT  = 0x10,
    _CAN_CONFIG_DBL_BUFFER_ON   = 0xFF,   // XXX1XXXX
    _CAN_CONFIG_DBL_BUFFER_OFF  = 0xEF,   // XXX0XXXX

    _CAN_CONFIG_MSG_BITS        = 0x60,
    _CAN_CONFIG_ALL_MSG         = 0xFF,   // X11XXXXX
    _CAN_CONFIG_VALID_XTD_MSG   = 0xDF,   // X10XXXXX
    _CAN_CONFIG_VALID_STD_MSG   = 0xBF,   // X01XXXXX
    _CAN_CONFIG_ALL_VALID_MSG   = 0x9F;   // X00XXXXX

You may use bitwise AND (&) to form config byte out of these values. For example:

Copy Code To Clipboard

init = _CAN_CONFIG_SAMPLE_THRICE &
       _CAN_CONFIG_PHSEG2_PRG_ON &
       _CAN_CONFIG_STD_MSG       &
       _CAN_CONFIG_DBL_BUFFER_ON &
       _CAN_CONFIG_VALID_XTD_MSG &
       _CAN_CONFIG_LINE_FILTER_OFF;
...
CANInitialize(1, 1, 3, 3, 1, init);   // initialize CAN

CAN_TX_MSG_FLAGS Constants

CAN_TX_MSG_FLAGS are flags related to transmission of a CAN message:

Copy Code To Clipboard

const unsigned int
    _CAN_TX_PRIORITY_BITS = 0x03,
    _CAN_TX_PRIORITY_0    = 0xFC,   // XXXXXX00
    _CAN_TX_PRIORITY_1    = 0xFD,   // XXXXXX01
    _CAN_TX_PRIORITY_2    = 0xFE,   // XXXXXX10
    _CAN_TX_PRIORITY_3    = 0xFF,   // XXXXXX11

    _CAN_TX_FRAME_BIT     = 0x08,
    _CAN_TX_STD_FRAME     = 0xFF,   // XXXXX1XX
    _CAN_TX_XTD_FRAME     = 0xF7,   // XXXXX0XX

    _CAN_TX_RTR_BIT       = 0x40,
    _CAN_TX_NO_RTR_FRAME  = 0xFF,   // X1XXXXXX
    _CAN_TX_RTR_FRAME     = 0xBF;   // X0XXXXXX

You may use bitwise AND (&) to adjust the appropriate flags. For example:

Copy Code To Clipboard

// form value to be used with CANSendMessage:
send_config = _CAN_TX_PRIORITY_0 &
              _CAN_TX_XTD_FRAME  &
              _CAN_TX_NO_RTR_FRAME;
...
CANSendMessage(id, data, 1, send_config);

CAN_RX_MSG_FLAGS Constants

CAN_RX_MSG_FLAGS are flags related to reception of CAN message. If a particular bit is set; corresponding meaning is TRUE or else it will be FALSE.

Copy Code To Clipboard

const unsigned int
    _CAN_RX_FILTER_BITS  = 0x07,  // Use this to access filter bits
    _CAN_RX_FILTER_1     = 0x00,
    _CAN_RX_FILTER_2     = 0x01,
    _CAN_RX_FILTER_3     = 0x02,
    _CAN_RX_FILTER_4     = 0x03,
    _CAN_RX_FILTER_5     = 0x04,
    _CAN_RX_FILTER_6     = 0x05,
    _CAN_RX_OVERFLOW     = 0x08,  // Set if Overflowed else cleared
    _CAN_RX_INVALID_MSG  = 0x10,  // Set if invalid else cleared
    _CAN_RX_XTD_FRAME    = 0x20,  // Set if XTD message else cleared
    _CAN_RX_RTR_FRAME    = 0x40,  // Set if RTR message else cleared
    _CAN_RX_DBL_BUFFERED = 0x80;  // Set if this message was hardware double-buffered

You may use bitwise AND (&) to adjust the appropriate flags. For example:

Copy Code To Clipboard

if (MsgFlag & _CAN_RX_OVERFLOW != 0) {
  ...
  // Receiver overflow has occurred.
  // We have lost our previous message.
}

CAN_MASK Constants

CAN_MASK constants define mask codes. Function CANxSetMask expects one of these as its argument:

Copy Code To Clipboard

const unsigned int
    _CAN_MASK_B1 = 0,
    _CAN_MASK_B2 = 1;

CAN_FILTER Constants

CAN_FILTER constants define filter codes. Function CANxSetFilter expects one of these as its argument:

Copy Code To Clipboard

const unsigned int
    _CAN_FILTER_B1_F1 = 0,
    _CAN_FILTER_B1_F2 = 1,
    _CAN_FILTER_B2_F1 = 2,
    _CAN_FILTER_B2_F2 = 3,
    _CAN_FILTER_B2_F3 = 4,
    _CAN_FILTER_B2_F4 = 5;

Library Example

The example demonstrates CAN protocol. The 1st node initiates the communication with the 2nd node by sending some data to its address. The 2nd node responds by sending back the data incremented by 1. The 1st node then does the same and sends incremented data back to the 2nd node, etc.

Code for the first CAN node:

Copy Code To Clipboard

unsigned int Can_Init_Flags, Can_Send_Flags, Can_Rcv_Flags;  // can flags
unsigned int Rx_Data_Len;                                    // received data length in bytes
char RxTx_Data[8];                                           // can rx/tx data buffer
char Msg_Rcvd;                                               // reception flag
unsigned long Tx_ID, Rx_ID;                                  // can rx and tx ID

void main() {

  ADPCFG = 0xFFFF;
  PORTB = 0;
  TRISB = 0;

  Can_Init_Flags = 0;                            //
  Can_Send_Flags = 0;                            // clear flags
  Can_Rcv_Flags  = 0;                            //

  Can_Send_Flags = _CAN_TX_PRIORITY_0 &           // Form value to be used
                   _CAN_TX_XTD_FRAME &            //  with CAN2Write
                   _CAN_TX_NO_RTR_FRAME;

  Can_Init_Flags = _CAN_CONFIG_SAMPLE_THRICE &    // Form value to be used
                   _CAN_CONFIG_PHSEG2_PRG_ON &    //  with CAN2Initialize
                   _CAN_CONFIG_XTD_MSG &
                   _CAN_CONFIG_DBL_BUFFER_ON &
                   _CAN_CONFIG_MATCH_MSG_TYPE &
                   _CAN_CONFIG_LINE_FILTER_OFF;

  RxTx_Data[0] = 9;                              // set initial data to be sent
  CAN2Initialize(1,3,3,3,1,Can_Init_Flags);      // initialize CAN2

  CAN2SetOperationMode(_CAN_MODE_CONFIG,0xFF);    // set CONFIGURATION mode

  CAN2SetMask(_CAN_MASK_B1,-1,_CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG);   // set all mask1 bits to ones
  CAN2SetMask(_CAN_MASK_B2,-1,_CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG);   // set all mask2 bits to ones
  CAN2SetFilter(_CAN_FILTER_B2_F3,3,_CAN_CONFIG_XTD_MSG);                         // set id of filter B1_F1 to 3

  CAN2SetOperationMode(_CAN_MODE_NORMAL,0xFF);                                   // set NORMAL mode

  Tx_ID = 12111;                                                                // set transmit ID

  CAN2Write(Tx_ID, RxTx_Data, 1, Can_Send_Flags);                               // send initial message

  while(1) {                                                                    // endless loop
    Msg_Rcvd = CAN2Read(&Rx_ID , RxTx_Data , &Rx_Data_Len, &Can_Rcv_Flags);     // receive message
    if ((Rx_ID == 3u) && Msg_Rcvd) {                                            // if message received check id
      PORTB = RxTx_Data[0];                                                     // id correct, output data at PORTB
      RxTx_Data[0]++;                                                          // increment received data
      Delay_ms(10);
      CAN2Write(Tx_ID, RxTx_Data, 1, Can_Send_Flags);                           // send incremented data back
    }
  }
}

Code for the second CAN node:

Copy Code To Clipboard

unsigned int Can_Init_Flags, Can_Send_Flags, Can_Rcv_Flags;  // can flags
unsigned int Rx_Data_Len;                                    // received data length in bytes
char RxTx_Data[8];                                           // can rx/tx data buffer
char Msg_Rcvd;                                               // reception flag
unsigned long Tx_ID, Rx_ID;                                  // can rx and tx ID


void main() {

  ADPCFG = 0xFFFF;
  PORTB = 0;
  TRISB = 0;

  Can_Init_Flags = 0;                              //
  Can_Send_Flags = 0;                              // clear flags
  Can_Rcv_Flags  = 0;                              //

  Can_Send_Flags = _CAN_TX_PRIORITY_0 &             // Form value to be used
                   _CAN_TX_XTD_FRAME &              //  with CAN2Write
                   _CAN_TX_NO_RTR_FRAME;

  Can_Init_Flags = _CAN_CONFIG_SAMPLE_THRICE &      // Form value to be used
                   _CAN_CONFIG_PHSEG2_PRG_ON &      //  with CAN2Initialize
                   _CAN_CONFIG_XTD_MSG &
                   _CAN_CONFIG_DBL_BUFFER_ON &
                   _CAN_CONFIG_MATCH_MSG_TYPE &
                   _CAN_CONFIG_LINE_FILTER_OFF;

  CAN2Initialize(1,3,3,3,1,Can_Init_Flags);        // initialize CAN2

  CAN2SetOperationMode(_CAN_MODE_CONFIG,0xFF);      // set CONFIGURATION mode

  CAN2SetMask(_CAN_MASK_B1,-1,_CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG);   // set all mask1 bits to ones
  CAN2SetMask(_CAN_MASK_B2,-1,_CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG);   // set all mask2 bits to ones
  CAN2SetFilter(_CAN_FILTER_B1_F1,12111,_CAN_CONFIG_XTD_MSG);                     // set id of filter B1_F1 to 12111

  CAN2SetOperationMode(_CAN_MODE_NORMAL,0xFF);                                   // set NORMAL mode

  Tx_ID = 3;                                                                    // set tx ID

  while(1) {                                                                    // endless loop
    Msg_Rcvd = CAN2Read(&Rx_ID , RxTx_Data , &Rx_Data_Len, &Can_Rcv_Flags);     // receive message
    if ((Rx_ID == 12111u) && Msg_Rcvd) {                                        // if message received check id
      PORTB = RxTx_Data[0];                                                     // id correct, output data at PORTB
      RxTx_Data[0]++;                                                          // increment received data
      CAN2Write(Tx_ID, RxTx_Data, 1, Can_Send_Flags);                           // send incremented data back
    }
  }
}

HW Connection

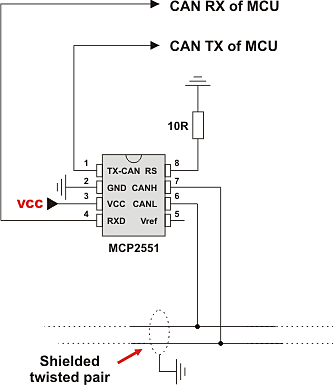

Example of interfacing CAN transceiver with MCU and bus

Example of interfacing CAN transceiver with MCU and CAN bus

Want more examples and libraries?
Find them on
