CAN Library

The mikroC PRO for PIC32 provides a library (driver) for working with the PIC32 CAN module.

The CAN is a very robust protocol that has error detection and signalization, self–checking and fault confinement. Faulty CAN data and remote frames are re-transmitted automatically, similar to the Ethernet.

Data transfer rates depend on distance. For example, 1 Mbit/s can be achieved at network lengths below 40m while 250 Kbit/s can be achieved at network lengths below 250m. The greater distance the lower maximum bitrate that can be achieved. The lowest bitrate defined by the standard is 200Kbit/s. Cables used are shielded twisted pairs.

CAN supports two message formats:

Standard format, with 11 identifier bits and
Extended format, with 29 identifier bits

Important :

Consult the CAN standard about CAN bus termination resistance.
CAN library routines require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2.
Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxSetOperationMode

Prototype	void CANxSetOperationMode(unsigned int mode, unsigned int WAIT);
Description	Sets the CAN module to requested mode.
Parameters	`mode:` CAN module operation mode. Valid values: `CAN_OP_MODE` constants. See CAN_OP_MODE constants. `WAIT:` CAN mode switching verification request. If `WAIT == 0`, the call is non-blocking. The function does not verify if the CAN module is switched to requested mode or not. Caller must use CANxGetOperationMode to verify correct operation mode before performing mode specific operation. If `WAIT != 0`, the call is blocking – the function won’t “return” until the requested mode is set.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus.
Example	// set the CAN1 module into configuration mode (wait inside CAN1SetOperationMode until this mode is set) CAN1SetOperationMode(_CAN_MODE_CONFIG, 0xFF);
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxGetOperationMode

Prototype	unsigned int CANxGetOperationMode();
Description	The function returns current operation mode of the CAN module. See CAN_OP_MODE constants or device datasheet for operation mode codes.
Parameters	None.
Returns	Current operation mode.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus.
Example	// check whether the CAN1 module is in Normal mode and if it is then do something. if (CAN1GetOperationMode() == _CAN_MODE_NORMAL) { ... }
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxInitialize

Prototype	void CANxInitialize(unsigned int SJW, unsigned int BRP, unsigned int PHSEG1, unsigned int PHSEG2, unsigned int PROPSEG, unsigned int CAN_CONFIG_FLAGS);
Description	Initializes the CAN module. The internal CAN module is set to : Disable CAN capture Continue CAN operation in Idle mode Do not abort pending transmissions Fcan clock : 4*Tcy (Fosc) Baud rate is set according to given parameters CAN mode is set to Normal Filter and mask registers IDs are set to zero Filter and mask message frame type is set according to `CAN_CONFIG_FLAGS` value `SAM`, `SEG2PHTS`, `WAKFIL` and `DBEN` bits are set according to `CAN_CONFIG_FLAGS` value.
Parameters	`SJW` as defined in MCU's datasheet (CAN Module) `BRP` as defined in MCU's datasheet (CAN Module) `PHSEG1` as defined in MCU's datasheet (CAN Module) `PHSEG2` as defined in MCU's datasheet (CAN Module) `PROPSEG` as defined in MCU's datasheet (CAN Module) `CAN_CONFIG_FLAGS` is formed from predefined constants. See CAN_CONFIG_FLAGS constants.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus.
Example	// initialize the CAN1 module with appropriate baud rate and message acceptance flags along with the sampling rules unsigned int can_config_flags; ... Can_Init_Flags = _CAN_CONFIG_SAMPLE_THRICE & // Form value to be used _CAN_CONFIG_PHSEG2_PRG_ON & // with CAN1Initialize _CAN_CONFIG_XTD_MSG & _CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_LINE_FILTER_OFF; CAN1Initialize(1,3,3,3,1,Can_Init_Flags); // initialize the CAN1 module
Notes	CAN mode NORMAL will be set on exit. CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxAssignBuffer

Prototype	void CANxAssignBuffer(char *buffer);
Description	Assigns FIFO buffer for the CAN module .
Parameters	`buffer:` pointer to a space in the RAM where the CAN message FIFO buffers will be stored.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus.
Example	// reserve space for 2 buffers with 8 messages (each message is 16 bytes) // beggining of the buffer must be 32bit aligned char buffer[2816] absolute 0xA0000000; CAN1AssignBuffer(buffer);
Notes	CAN module can have up to 32 FIFO buffers, each having up to 32 messages. Transmit message size is 16 bytes long, while the receive message size may be 16 bytes (for full receive message mode) or 8 bytes for data-only message receive. CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxConfigureFIFO

Prototype	void CANxConfigureFIFO(char num, char size, unsigned int flags);
Description	Configures CAN FIFO buffers.
Parameters	`num:` FIFO buffer number. `size:` Size of the FIFO buffer (in messages). `flags:` parameter is formed from the predefined constants. See CAN_RX_MSG_FLAGS, CAN_TX_MSG_FLAGS and CAN_FIFO constants.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus.
Example	// configure RX FIFO buffer CAN1ConfigureFIFO(_CAN_BUFFER_0, 8,_CAN_FIFO_RX & _CAN_FULL_MESSAGE); //RX buffer 8 messages deep // configure TX FIFO buffer CAN1ConfigureFIFO(_CAN_BUFFER_1, 8,_CAN_FIFO_TX & _CAN_TX_PRIORITY_3 & _CAN_TX_NO_RTR_FRAME); //TX buffer 8 messages deep
Notes	CAN mode NORMAL will be set on exit. CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxSetBaudRate

Prototype	void CANxSetBaudRate(unsigned int SJW, unsigned int BRP, unsigned int PHSEG1, unsigned int PHSEG2, unsigned int PROPSEG, unsigned int CAN_CONFIG_FLAGS);
Description	Sets CAN baud rate. Due to complexity of the CAN protocol, you can not simply force a bps value. Instead, use this function when CAN is in Config mode. Refer to datasheet for details. `SAM`, `SEG2PHTS` and `WAKFIL` bits are set according to `CAN_CONFIG_FLAGS` value. Refer to datasheet for details.
Parameters	`SJW` as defined in MCU's datasheet (CAN Module) `BRP` as defined in MCU's datasheet (CAN Module) `PHSEG1` as defined in MCU's datasheet (CAN Module) `PHSEG2` as defined in MCU's datasheet (CAN Module) `PROPSEG` as defined in MCU's datasheet (CAN Module) `CAN_CONFIG_FLAGS` is formed from predefined constants. See CAN_CONFIG_FLAGS constants.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. CAN must be in Config mode, otherwise the function will be ignored. See CANxSetOperationMode.
Example	// set required baud rate and sampling rules unsigned int can_config_flags; ... CAN1SetOperationMode(_CAN_MODE_CONFIG,0xFF); // set CONFIGURATION mode (CAN1 module must be in config mode for baud rate settings) can_config_flags = _CAN_CONFIG_SAMPLE_THRICE & // Form value to be used _CAN_CONFIG_PHSEG2_PRG_ON & // with CAN1SetBaudRate _CAN_CONFIG_STD_MSG & _CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_LINE_FILTER_OFF; CAN1SetBaudRate(1,3,3,3,1,can_config_flags); // set the CAN1 module baud rate
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxSetMask

Prototype	void CANxSetMask(unsigned int CAN_MASK, unsigned long val, unsigned int CAN_CONFIG_FLAGS);
Description	The function configures appropriate mask for advanced message filtering.
Parameters	`CAN_MASK:` CAN module mask number. Valid values: `CAN_MASK` constants. See CAN_MASK constants. `val:` mask register value. This value is bit-adjusted to appropriate buffer mask registers. `CAN_CONFIG_FLAGS:` selects type of message to filter. Valid values: `_CAN_CONFIG_ALL_VALID_MSG`, `_CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_STD_MSG`, `_CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG`. See CAN_CONFIG_FLAGS constants.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. CAN must be in Config mode, otherwise the function will be ignored. See CANxSetOperationMode.
Example	// set appropriate filter mask and message type value CAN1SetOperationMode(_CAN_MODE_CONFIG,0xFF); // set CONFIGURATION mode (CAN1 module must be in config mode for mask settings) CAN1SetMask(_CAN_MASK_0, -1, _CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG); // set all mask1 bits to ones
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxFilterEnable

Prototype	void CANxFilterEnable(char CAN_FILTER);
Description	The function enables appropriate receive message filters.
Parameters	`CAN_FILTER:` filter enable selection parameter. Each bit corresponds to appropriate filter. By setting bit the corresponding filter will be enabled.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. CAN must be in Config mode, otherwise the function will be ignored. See CANxSetOperationMode.
Example	// Filters 0, 4, 8, 12 are to be enabled: CAN1FilterEnable(0x1111);
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxFilterDisable

Prototype	void CANxFilterDisable(char CAN_FILTER);
Description	The function disables appropriate receive message filters.
Parameters	`CAN_FILTER:` filter disable selection parameter. Each bit corresponds to appropriate filter. By setting bit the corresponding filter will be disabled.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. CAN must be in Config mode, otherwise the function will be ignored. See CANxSetOperationMode.
Example	// Filters 0, 4, 8, 12 are to be disabled: CAN1FilterDisable(0x1111);
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxSetFilter

Prototype	void CANxSetFilter(char CAN_FILTER, long val, unsigned int CAN_FILTER_MASK, unsigned int CAN_FILTER_RXBUFF, unsigned int CAN_CONFIG_FLAGS);
Description	Function sets message filter. Given `value` is bit adjusted to appropriate buffer mask registers.
Parameters	`CAN_FILTER:` CAN module filter number. Valid values: `CAN_FILTER` constants. See CAN_FILTER constants. `val:` filter register value. This value is bit-adjusted to appropriate filter registers `CAN_FILTER_MASK:` selects type of message to filter. See CAN_MASK constants. `CAN_FILTER_RXBUFF:` selects type of message to filter. See CAN_BUFFER constants. `CAN_CONFIG_FLAGS:` selects type of message to filter. Valid values: See CAN_CONFIG_FLAGS constants.
Returns	Nothing.
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. CAN must be in Config mode, otherwise the function will be ignored. See CANxSetOperationMode.
Example	// set appropriate filter value and message type CAN1SetOperationMode(_CAN_MODE_CONFIG,0xFF); // set CONFIGURATION mode (CAN1 module must be in config mode for filter settings) CAN1SetFilter(_CAN_FILTER_31, ID_1st, _CAN_MASK_3, _CAN_BUFFER_0, _CAN_CONFIG_XTD_MSG); // set id of filter_B1_F1 to 1st node ID
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxReadBuffer

Prototype	unsigned int CANxReadBuffer(unsigned long id, char* Data_, char* buffer, unsigned int dataLen, unsigned int* *CAN_RX_MSG_FLAGS);
Description	If a full Receive Buffer is found, it will be processed in the following way : Message ID is retrieved and stored to location pointed by `id` pointer. Message data is retrieved and stored to array pointed by `Data_` pointer. Message receive buffer is determined by the `buffer` parameter. Message length is retrieved and stored to location pointed by `dataLen` pointer. Message flags are retrieved and stored to location pointed by `CAN_RX_MSG_FLAGS` pointer.
Parameters	`id:` message identifier address. `data_:` an array of bytes up to 8 bytes in length. `buffer:` receive buffer. `dataLen:` data length address. `CAN_RX_MSG_FLAGS:` message flags address. For message receive flags format refer to `CAN_RX_MSG_FLAGS` constants. See CAN_RX_MSG_FLAGS constants.
Returns	`0` if nothing is received `0xFFFF` if one of the Receive Buffers is full (message received)
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. The CAN module must be in a mode in which receiving is possible. See CANxSetOperationMode.
Example	if (msg_rcvd = CAN1ReadBuffer(&msg_id, data, _CAN_BUFFER_0, &data_len, &rx_flags)) { ... }
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxRead

Prototype	unsigned int CANxRead(unsigned long id, char* Data_, unsigned int* dataLen, unsigned int* *CAN_RX_MSG_FLAGS);
Description	If at least one full Receive Buffer is found, it will be processed in the following way : Message ID is retrieved and stored to location pointed by `id` pointer Message data is retrieved and stored to array pointed by `Data_` pointer Message length is retrieved and stored to location pointed by `dataLen` pointer Message flags are retrieved and stored to location pointed by `CAN_RX_MSG_FLAGS` pointer
Parameters	`id:` message identifier address `Data_:` an array of bytes up to 8 bytes in length `dataLen:` data length address `CAN_RX_MSG_FLAGS:` message flags address. For message receive flags format refer to `CAN_RX_MSG_FLAGS` constants. See CAN_RX_MSG_FLAGS constants.
Returns	`0` if nothing is received `0xFFFF` if one of the Receive Buffers is full (message received)
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. The CAN module must be in a mode in which receiving is possible. See CANxSetOperationMode.
Example	// check the CAN1 module for received messages. If any was received do something. unsigned int msg_rcvd, rx_flags, data_len; char data[8]; unsigned long msg_id; ... CAN1SetOperationMode(_CAN_MODE_NORMAL,0xFF); // set NORMAL mode (CAN1 module must be in mode in which receive is possible) ... rx_flags = 0; // clear message flags if (msg_rcvd = CAN1Read(&msg_id, data, &data_len, &rx_flags)) { ... }
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxWriteBuffer

Prototype	unsigned int CANxWriteBuffer(unsigned long id, char Data_, char* buffer, unsigned int DataLen, unsigned int CAN_TX_MSG_FLAGS);
Description	If a empty Transmit Buffer is found, the function sends message in the queue for transmission.
Parameters	`id:` CAN message identifier. Valid values: 11 or 29 bit values, depending on message type (standard or extended) `Data_:` data to be sent Message transmit buffer is determined by the `buffer` parameter. `DataLen:` data length. Valid values: `0..8` `CAN_TX_MSG_FLAGS:` message flags. Valid values: `CAN_TX_MSG_FLAGS` constants. See CAN_TX_MSG_FLAGS constants.
Returns	`0` if all Transmit Buffers are busy `0xFFFF` if at least one Transmit Buffer is available
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. The CAN module must be in mode in which transmission is possible. See CANxSetOperationMode.
Example	// send message extended CAN message with appropriate ID and data unsigned int tx_flags; char data[8]; unsigned long msg_id; ... CAN1SetOperationMode(_CAN_MODE_NORMAL,0xFF); // set NORMAL mode (CAN1 must be in mode in which transmission is possible) tx_flags = _CAN_TX_PRIORITY_0 & _CAN_TX_XTD_FRAME & _CAN_TX_NO_RTR_FRAME; // set message flags CAN1Write(msg_id, data, _CAN_BUFFER_0, 1, tx_flags);
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CANxWrite

Prototype	unsigned int CANxWrite(unsigned long id, char Data_, unsigned int* DataLen, unsigned int CAN_TX_MSG_FLAGS);
Description	If at least one empty Transmit Buffer is found, the function sends message in the queue for transmission.
Parameters	`id:` CAN message identifier. Valid values: 11 or 29 bit values, depending on message type (standard or extended) `Data_:` data to be sent `DataLen:` data length. Valid values: `0..8` `CAN_TX_MSG_FLAGS:` message flags. Valid values: `CAN_TX_MSG_FLAGS` constants. See CAN_TX_MSG_FLAGS constants.
Returns	`0` if all Transmit Buffers are busy `0xFFFF` if at least one Transmit Buffer is available
Requires	MCU with the CAN module. MCU must be connected to the CAN transceiver (MCP2551 or similar) which is connected to the CAN bus. The CAN module must be in mode in which transmission is possible. See CANxSetOperationMode.
Example	// send message extended CAN message with appropriate ID and data unsigned int tx_flags; char data[8]; unsigned long msg_id; ... CAN1SetOperationMode(_CAN_MODE_NORMAL,0xFF); // set NORMAL mode (CAN1 must be in mode in which transmission is possible) tx_flags = _CAN_TX_PRIORITY_0 & _CAN_TX_XTD_FRAME & _CAN_TX_NO_RTR_FRAME; // set message flags CAN1Write(msg_id, data, 1, tx_flags);
Notes	CAN library routine require you to specify the module you want to use. To use the desired CAN module, simply change the letter x in the routine prototype for a number from 1 to 2. Number of CAN modules per MCU differs from chip to chip. Please, read the appropriate datasheet before utilizing this library.

CAN Constants

There is a number of constants predefined in CAN library. To be able to use the library effectively, you need to be familiar with these. You might want to check the example at the end of the chapter.

CAN_OP_MODE Constants

CAN_OP_MODE constants define CAN operation mode. Function CANxSetOperationMode expects one of these as its argument:

Copy Code To Clipboard

const unsigned int
    _CAN_MODE_BITS        = 0xE00000,   // Use this to access opmode  bits
    _CAN_MODE_NORMAL      = 0x00,
    _CAN_MODE_DISABLE     = 0x01,
    _CAN_MODE_LOOP        = 0x02,
    _CAN_MODE_LISTEN      = 0x03,
    _CAN_MODE_CONFIG      = 0x04,
    _CAN_MODE_LISTEN_ALL  = 0x07;

CAN_CONFIG_FLAGS Constants

CAN_CONFIG_FLAGS constants define flags related to CAN module configuration. Functions CANxInitialize and CANxSetBaudRate expect one of these (or a bitwise combination) as their argument:

Copy Code To Clipboard

const unsigned int
    _CAN_CONFIG_DEFAULT         = 0xFF,   // 11111111

    _CAN_CONFIG_PHSEG2_PRG_BIT  = 0x01,
    _CAN_CONFIG_PHSEG2_PRG_ON   = 0xFF,   // XXXXXXX1
    _CAN_CONFIG_PHSEG2_PRG_OFF  = 0xFE,   // XXXXXXX0

    _CAN_CONFIG_LINE_FILTER_BIT = 0x02,
    _CAN_CONFIG_LINE_FILTER_ON  = 0xFF,   // XXXXXX1X
    _CAN_CONFIG_LINE_FILTER_OFF = 0xFD,   // XXXXXX0X

    _CAN_CONFIG_SAMPLE_BIT      = 0x04,
    _CAN_CONFIG_SAMPLE_ONCE     = 0xFF,   // XXXXX1XX
    _CAN_CONFIG_SAMPLE_THRICE   = 0xFB,   // XXXXX0XX

    _CAN_CONFIG_MSG_TYPE_BIT    = 0x08,
    _CAN_CONFIG_STD_MSG         = 0xFF,   // XXXX1XXX
    _CAN_CONFIG_XTD_MSG         = 0xF7,   // XXXX0XXX

    _CAN_CONFIG_MATCH_TYPE_BIT = 0x20,
    _CAN_CONFIG_ALL_VALID_MSG  = 0xDF,    // XX0XXXXX
    _CAN_CONFIG_MATCH_MSG_TYPE = 0xFF;    // XX1XXXXX

You may use bitwise AND (&) to form config byte out of these values. For example:

Copy Code To Clipboard

init = _CAN_CONFIG_SAMPLE_THRICE &
       _CAN_CONFIG_PHSEG2_PRG_ON &
       _CAN_CONFIG_STD_MSG       &
       _CAN_CONFIG_DBL_BUFFER_ON &
       _CAN_CONFIG_VALID_XTD_MSG &
       _CAN_CONFIG_LINE_FILTER_OFF;
...
CAN1Initialize(1, 1, 3, 3, 1, init);   // initialize CAN

CAN_TX_MSG_FLAGS Constants

CAN_TX_MSG_FLAGS are flags related to transmission of a CAN message:

Copy Code To Clipboard

const unsigned int
    _CAN_TX_PRIORITY_BITS = 0x0003,
    _CAN_TX_PRIORITY_0    = 0xFFFC,   // XXXXXX00
    _CAN_TX_PRIORITY_1    = 0xFFFD,   // XXXXXX01
    _CAN_TX_PRIORITY_2    = 0xFFFE,   // XXXXXX10
    _CAN_TX_PRIORITY_3    = 0xFFFF,   // XXXXXX11

    _CAN_TX_FRAME_BIT     = 0x08,
    _CAN_TX_STD_FRAME     = 0xFF,     // XXXXX1XX
    _CAN_TX_XTD_FRAME     = 0xF7,     // XXXXX0XX

    _CAN_TX_RTR_BIT       = 0x0040,
    _CAN_TX_NO_RTR_FRAME  = 0xFFFF,   // X1XXXXXX
    _CAN_TX_RTR_FRAME     = 0xFFBF;   // X0XXXXXX

You may use bitwise AND (&) to adjust the appropriate flags. For example:

Copy Code To Clipboard

// form value to be used with CANSendMessage:
send_config = _CAN_TX_PRIORITY_0 &
              _CAN_TX_XTD_FRAME  &
              _CAN_TX_NO_RTR_FRAME;
...
CAN1Write(id, data, 1, send_config);

CAN_RX_MSG_FLAGS Constants

CAN_RX_MSG_FLAGS are flags related to reception of CAN message. If a particular bit is set; corresponding meaning is TRUE or else it will be FALSE.

Copy Code To Clipboard

const unsigned int
    _CAN_RX_FILTER_BITS = 0x001F,  // Use this to access filter bits
    _CAN_RX_OVERFLOW    = 0x0020,  // Set if Overflowed, else cleared
    _CAN_RX_INVALID_MSG = 0x0040,  // Set if invalid, else cleared
    _CAN_RX_XTD_FRAME   = 0x0080,  // Set if XTD message, else cleared
    _CAN_RX_RTR_FRAME   = 0x0100,  // Set if RTR message, else cleared
    _CAN_RX_DATA_ONLY   = 0x0200;  // Set if Data Only message

You may use bitwise AND (&) to adjust the appropriate flags. For example:

Copy Code To Clipboard

if (MsgFlag & _CAN_RX_OVERFLOW != 0) {
  ...
  // Receiver overflow has occurred.
  // We have lost our previous message.
}

CAN_BUFFER Constants

CAN_BUFFER constants define CAN buffers. Function CANxSetFilter expects one of these as its argument:

Copy Code To Clipboard

const unsigned int
  _CAN_BUFFER_0   =  0 ,
  _CAN_BUFFER_1   =  1 ,
  _CAN_BUFFER_2   =  2 ,
  _CAN_BUFFER_3   =  3 ,
  _CAN_BUFFER_4   =  4 ,
  _CAN_BUFFER_5   =  5 ,
  _CAN_BUFFER_6   =  6 ,
  _CAN_BUFFER_7   =  7 ,
  _CAN_BUFFER_8   =  8 ,
  _CAN_BUFFER_9   =  9 ,
  _CAN_BUFFER_10  =  10,
  _CAN_BUFFER_11  =  11,
  _CAN_BUFFER_12  =  12,
  _CAN_BUFFER_13  =  13,
  _CAN_BUFFER_14  =  14,
  _CAN_BUFFER_15  =  15,
  _CAN_BUFFER_16  =  16,
  _CAN_BUFFER_17  =  17,
  _CAN_BUFFER_18  =  18,
  _CAN_BUFFER_19  =  19,
  _CAN_BUFFER_20  =  20,
  _CAN_BUFFER_21  =  21,
  _CAN_BUFFER_22  =  22,
  _CAN_BUFFER_23  =  23,
  _CAN_BUFFER_24  =  24,
  _CAN_BUFFER_25  =  25,
  _CAN_BUFFER_26  =  26,
  _CAN_BUFFER_27  =  27,
  _CAN_BUFFER_28  =  28,
  _CAN_BUFFER_29  =  29,
  _CAN_BUFFER_30  =  30,
  _CAN_BUFFER_31  =  31;

CAN_FIFO Constants

CAN_FIFO constants define FIFO constants. Function CANxConfigureFIFO expects one of these as its argument:

Copy Code To Clipboard

const unsigned int
  _CAN_FIFO_TXEN_BIT = 0x0080,
  _CAN_FIFO_TX = 0xFF7F,
  _CAN_FIFO_RX = 0xFFFF,

  _CAN_FIFO_DONLY_BIT = 0x1000,
  _CAN_DATA_ONLY = 0xEFFF,
  _CAN_FULL_MESSAGE = 0xFFFF;

CAN_MASK Constants

CAN_MASK constants define mask codes. Function CANxSetMask expects one of these as its argument:

Copy Code To Clipboard

const unsigned int
    _CAN_MASK_0 = 0,
    _CAN_MASK_1 = 1,
    _CAN_MASK_2 = 2,
    _CAN_MASK_3 = 3;

CAN_FILTER Constants

CAN_FILTER constants define filter codes. Function CANxSetFilter expects one of these as its argument:

Copy Code To Clipboard

const unsigned int
    _CAN_FILTER_0  =  0,
    _CAN_FILTER_1  =  1,
    _CAN_FILTER_2  =  2,
    _CAN_FILTER_3  =  3,
    _CAN_FILTER_4  =  4,
    _CAN_FILTER_5  =  5,
    _CAN_FILTER_6  =  6,
    _CAN_FILTER_7  =  7,
    _CAN_FILTER_8  =  8,
    _CAN_FILTER_9  =  9,
    _CAN_FILTER_10 = 10,
    _CAN_FILTER_11 = 11,
    _CAN_FILTER_12 = 12,
    _CAN_FILTER_13 = 13,
    _CAN_FILTER_14 = 14,
    _CAN_FILTER_15 = 15,
    _CAN_FILTER_16 = 16,
    _CAN_FILTER_17 = 17,
    _CAN_FILTER_18 = 18,
    _CAN_FILTER_19 = 19,
    _CAN_FILTER_20 = 20,
    _CAN_FILTER_21 = 21,
    _CAN_FILTER_22 = 22,
    _CAN_FILTER_23 = 23,
    _CAN_FILTER_24 = 24,
    _CAN_FILTER_25 = 25,
    _CAN_FILTER_26 = 26,
    _CAN_FILTER_27 = 27,
    _CAN_FILTER_28 = 28,
    _CAN_FILTER_29 = 29,
    _CAN_FILTER_30 = 30,
    _CAN_FILTER_31 = 31;

Library Example

The example demonstrates CAN protocol. The 1st node initiates the communication with the 2nd node by sending some data to its address. The 2nd node responds by sending back the data incremented by 1. The 1st node then does the same and sends incremented data back to the 2nd node, etc.

Code for the first CAN node:

Copy Code To Clipboard

unsigned int Can_Init_Flags, Can_Send_Flags, Can_Rcv_Flags;  // can flags
unsigned int Rx_Data_Len;                                    // received data length in bytes
char RxTx_Data[8];
char Msg_Rcvd;                                               // reception flag
const unsigned long ID_1st = 12111, ID_2nd = 3;              // node IDs
unsigned long Rx_ID;

// reserve space for 2 buffers with 8 messages (each message is 16 bytes)
// beggining of the buffer must be 32bit aligned
char FIFObuffers[2*8*16] absolute 0xA0000000;

char i;
void main() {
  AD1PCFG = 0;
  LATB = 0;
  TRISB = 0;

  Can_Init_Flags = 0;                             //
  Can_Send_Flags = 0;                             // clear flags
  Can_Rcv_Flags  = 0;                             //

  Can_Send_Flags =            // form value to be used
                   _CAN_TX_XTD_FRAME &            // with CAN1Write
                   _CAN_TX_NO_RTR_FRAME;

  Can_Init_Flags = _CAN_CONFIG_SAMPLE_THRICE &    // form value to be used
                   _CAN_CONFIG_PHSEG2_PRG_ON &    // with CAN1Initialize
                   _CAN_CONFIG_XTD_MSG &
                   _CAN_CONFIG_MATCH_MSG_TYPE &
                   _CAN_CONFIG_LINE_FILTER_OFF;

  CAN1Initialize(1,3,3,3,1,Can_Init_Flags);       // initialize CAN1

  CAN1SetOperationMode(_CAN_MODE_CONFIG,0xFF);    // set CONFIGURATION mode

  CAN1AssignBuffer(FIFObuffers); //assign the buffers
  //configure rx fifo
  CAN1ConfigureFIFO(0, 8,_CAN_FIFO_RX & _CAN_FULL_MESSAGE); //RX buffer 8 messages deep
  //configure tx fifo
  CAN1ConfigureFIFO(1, 8,_CAN_FIFO_TX & _CAN_TX_PRIORITY_3 & _CAN_TX_NO_RTR_FRAME); //TX buffer 8 messages deep

  //set mask 0
  CAN1SetMask(_CAN_MASK_0, -1, _CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG);         // set all mask1 bits to ones
  //set filter 1
  CAN1SetFilter(_CAN_FILTER_31, ID_2nd, _CAN_MASK_0, _CAN_BUFFER_0, _CAN_CONFIG_XTD_MSG);  // set id of filter1 to 2nd node ID

  CAN1SetOperationMode(_CAN_MODE_NORMAL,0xFF);    // set NORMAL mode

  RxTx_Data[0] = 0xFE;
  CAN1Write(ID_1st, RxTx_Data, 1, Can_Send_Flags);

  while(1){
    Msg_Rcvd = CAN1Read(&Rx_ID, RxTx_Data, &Rx_Data_Len, &Can_Rcv_Flags);        // receive message
    if ((Rx_ID == ID_2nd) && Msg_Rcvd) {                                           // if message received check id
      LATB = RxTx_Data[0];                                                        // id correct, output data at PORTB
      RxTx_Data[0]++;                                                              // increment received data
      delay_ms(10);
      CAN1Write(ID_1st, RxTx_Data, 1, Can_Send_Flags);                             // send incremented data back
    }
  }

Code for the second CAN node:

Copy Code To Clipboard

unsigned int Can_Init_Flags, Can_Send_Flags, Can_Rcv_Flags;  // can flags
unsigned int Rx_Data_Len;                                    // received data length in bytes
char RxTx_Data[8];                                           // can rx/tx data buffer
char Msg_Rcvd;                                               // reception flag
const unsigned long ID_1st = 12111, ID_2nd = 3;              // node IDs
unsigned long Rx_ID;

// reserve space for 2 buffers with 8 messages (each message is 16 bytes)
// beggining of the buffer must be 32bit aligned
char FIFIObuffers[2*8*16] absolute 0xA0000000;
char TX_Data[8];

void main() {
  AD1PCFG = 0;
  LATB = 0;
  TRISB = 0;

  Can_Init_Flags = 0;                             //
  Can_Send_Flags = 0;                             // clear flags
  Can_Rcv_Flags  = 0;                             //

  Can_Send_Flags =            // form value to be used
                   _CAN_TX_XTD_FRAME &            // with CAN1Write
                   _CAN_TX_NO_RTR_FRAME;

  Can_Init_Flags = _CAN_CONFIG_SAMPLE_THRICE &    // form value to be used
                   _CAN_CONFIG_PHSEG2_PRG_ON &    // with CAN1Initialize
                   _CAN_CONFIG_XTD_MSG &
                   _CAN_CONFIG_MATCH_MSG_TYPE &
                   _CAN_CONFIG_LINE_FILTER_OFF;

  CAN1Initialize(1,3,3,3,1,Can_Init_Flags);       // initialize CAN1

  CAN1SetOperationMode(_CAN_MODE_CONFIG,0xFF);    // set CONFIGURATION mode

  CAN1AssignBuffer(FIFIObuffers); //assign the buffers
  //configure rx fifo
  CAN1ConfigureFIFO(0, 8, _CAN_FIFO_RX & _CAN_FULL_MESSAGE); //RX buffer 8 messages deep

  //configure tx fifo
  CAN1ConfigureFIFO(1, 8, _CAN_FIFO_TX & _CAN_TX_PRIORITY_3 & _CAN_TX_NO_RTR_FRAME); //TX buffer 8 messages deep

  //set mask 1
  CAN1SetMask(_CAN_MASK_1, -1, _CAN_CONFIG_MATCH_MSG_TYPE & _CAN_CONFIG_XTD_MSG);         // set all mask1 bits to ones
  //set filter 5
  CAN1SetFilter(_CAN_FILTER_31, ID_1st, _CAN_MASK_1, _CAN_BUFFER_0, _CAN_CONFIG_XTD_MSG);

  CAN1SetOperationMode(_CAN_MODE_NORMAL,0xFF);    // set CONFIGURATION mode
  RxTx_Data[0] = 0;
  TRISD = 0;
  while(1) {
                                                           // endless loop
    Msg_Rcvd = CAN1Read(&Rx_ID , RxTx_Data , &Rx_Data_Len, &Can_Rcv_Flags);        // receive message
    latd = Can_Rcv_Flags;
    if ((Rx_ID == ID_1st) && Msg_Rcvd) {                                           // if message received check id
      LATB = RxTx_Data[0];                                                         // id correct, output data at PORTB
      RxTx_Data[0]++;                                                              // increment received data
      CAN1Write(ID_2nd, RxTx_Data, 1, Can_Send_Flags);                             // send incremented data back
    }
  }

HW Connection

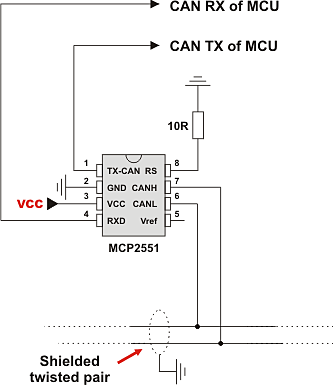

Example of interfacing CAN transceiver with MCU and bus

Example of interfacing CAN transceiver with MCU and CAN bus

Want more examples and libraries?
Find them on
