CCP module is available with a number of PIC MCUs. mikroC PRO for PIC provides library which simplifies using PWM HW Module.

  Important :

• Some MCUs have multiple CCP modules. In order to use the desired CCP library routine, simply change the x in the prototype with the appropriate module number, i.e. PWM2_Start();.

Library Routines

• PWMx_Init
• PWMx_Set_Duty
• PWMx_Start
• PWMx_Stop

PWMx_Init

Prototype	void PWMx_Init(long freq); // For Enhanced Mid-Range Core 145x/150x MCUs void PWMx_Init(unsigned long PWM_Freq, unsigned int timer_prescaler);
Returns	Nothing.
Description	Initializes the PWM module with duty ratio 0. Parameter freq is a desired PWM frequency in Hz (refer to device data sheet for correct values in respect with Fosc). timer_prescaler parameter represents the timer prescaler and can have following values: 1, 4, 16 and 64. This routine needs to be called before using other functions from PWM Library.
Requires	MCU must have CCP module.   Note : Calculation of the PWM frequency value is carried out by the compiler, as it would produce a relatively large code if performed on the library level. Therefore, compiler needs to know the value of the parameter in the compile time. That is why this parameter needs to be a constant, and not a variable.
Example	Initialize PWM module at 5KHz: PWM1_Init(5000);

PWMx_Set_Duty

PWM1_Set_Duty(192);

PWMx_Start

PWM1_Start();

PWMx_Stop

PWM1_Stop();

Library Example

The example changes PWM duty ratio on RC1 and RC2 pins continually. If LED is connected to these pins, you can observe the gradual change of emitted light.

Copy Code To Clipboard

unsigned short current_duty, old_duty, current_duty1, old_duty1;

void InitMain() {
  ANSEL  = 0;                         // Configure AN pins as digital
  ANSELH = 0;
  C1ON_bit = 0;                       // Disable comparators
  C2ON_bit = 0;

  PORTA = 255;
  TRISA = 255;                        // configure PORTA pins as input
  PORTB = 0;                          // set PORTB to 0
  TRISB = 0;                          // designate PORTB pins as output
  PORTC = 0;                          // set PORTC to 0
  TRISC = 0;                          // designate PORTC pins as output
  PWM1_Init(5000);                    // Initialize PWM1 module at 5KHz
  PWM2_Init(5000);                    // Initialize PWM2 module at 5KHz
}

void main() {
  InitMain();
  current_duty  = 16;                 // initial value for current_duty
  current_duty1 = 16;                 // initial value for current_duty1

  PWM1_Start();                       // start PWM1
  PWM2_Start();                       // start PWM2
  PWM1_Set_Duty(current_duty);        // Set current duty for PWM1
  PWM2_Set_Duty(current_duty1);       // Set current duty for PWM2

  while (1) {                         // endless loop
    if (RA0_bit) {                    // button on RA0 pressed
      Delay_ms(40);
      current_duty++;                 // increment current_duty
      PWM1_Set_Duty(current_duty);
     }

    if (RA1_bit) {                    // button on RA1 pressed
      Delay_ms(40);
      current_duty--;                 // decrement current_duty
      PWM1_Set_Duty(current_duty);
     }

    if (RA2_bit) {                    // button on RA2 pressed
      Delay_ms(40);
      current_duty1++;                // increment current_duty1
      PWM2_Set_Duty(current_duty1);
     }

    if (RA3_bit) {                    // button on RA3 pressed
      Delay_ms(40);
      current_duty1--;                // decrement current_duty1
      PWM2_Set_Duty(current_duty1);
     }

    Delay_ms(5);                      // slow down change pace a little
  }
}

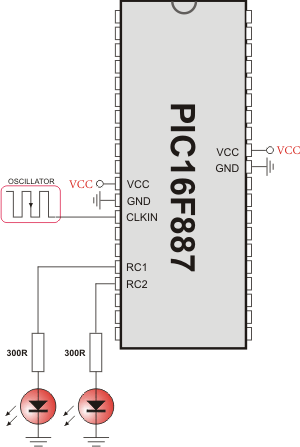

HW Connection

PWM demonstration
